ATA Install

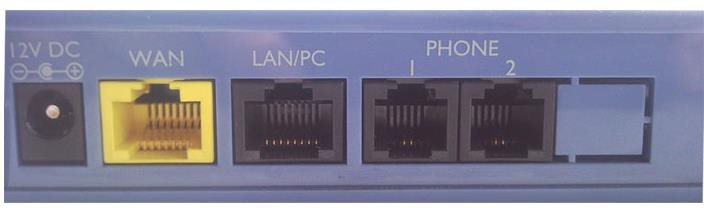

The back of your ATA device will look similar to this:

Step 1: In the WAN port, connect and Ethernet Cable that will supply the internet connection. This will be connected directly to a Router, Switch, or Modem.

Step 2: Connect the Fax machine to the Phone 1 Port with the standard phone cable.

Step 3: Plug in the Power Source to the 12V DC port, then plug into a wall outlet.

Step 4: Wait for up to 10 minutes for the ATA to boot up and register.

Step 5: Once all the lights are green, it is ready to be connected with REDcloud.
