Office Manager - Configuring Call Center Report Emails

Office Manager - Configuring Call Center Report Emails







Call center report emails give call center supervisors or office managers (with call center functionality enabled) the ability to request emails in a variety of formats and time windows.  The emails themselves are brandable and customizable using the standard template structure.  Advanced settings also allow for the supervisor to pick a few of their most important statistics to  be viewed  prominently in the email body.

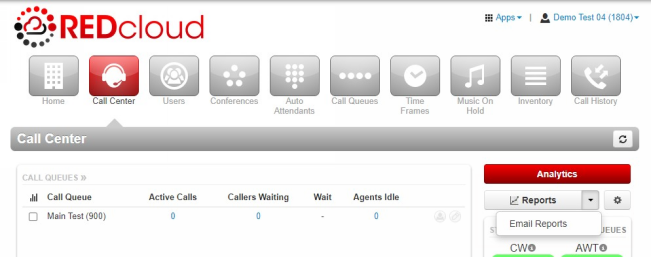

  1. Log into the Portal with a scope of Call Center Supervisor and navigate to the Call Center screen.
  2. Select the new Reports sub-menu Email Reports.

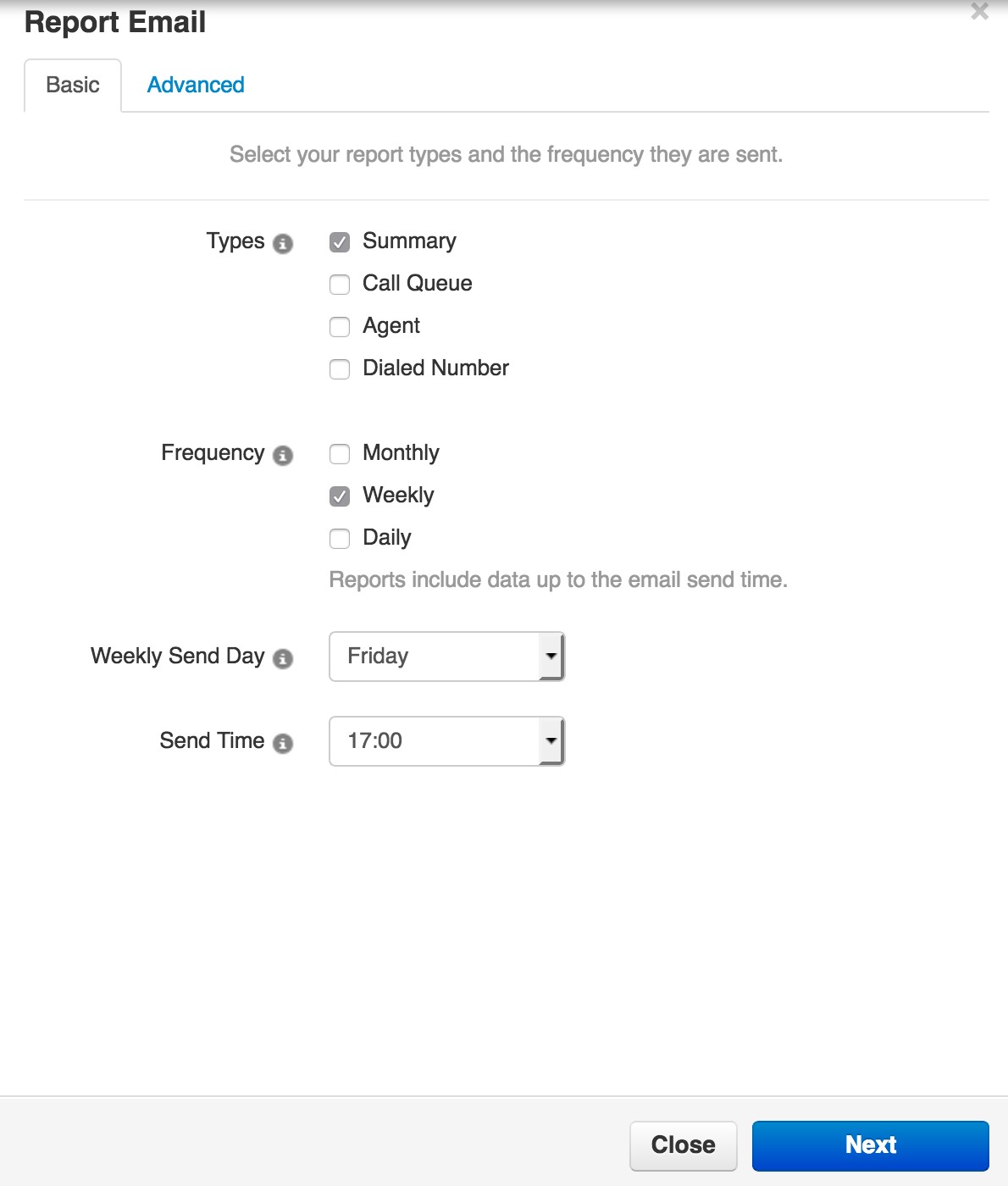

  1. Emailed Reports can be sent in varying frequencies including monthly, weekly, and daily. There are four types: Call Queue, Agent, Dialed Number, and a Summary report that includes the top data from each. Anywhere from 1 to all of the types and frequencies may be selected.






























      4.      Depending on the time period selected, the supervisor will be prompted to enter applicable time and date settings. For instance: a daily report will require the supervisor to set a time, and a weekly                        report will require the supervisor to set a day of the week and time.  The monthly report will require a day of the month and send the previous month's data on that day; setting to "1" will send the                          full previous calendar month.
      5.      Follow the on-screen prompts to configure the basic options, then select Next to continue
      6.      In the advanced options you can customize the contents of the reports for the varying statistics. These lists of statistics will vary based on the types of reports requested in the basic tab.
      7.      There can be up to four extra email addresses added to receive the given reports.
      8.      If the Supervisor would like the raw data including all available statistics then they can check Attach CSV to Email.
      9.      When the configuration is complete, select Save.  The email reports will then be scheduled.

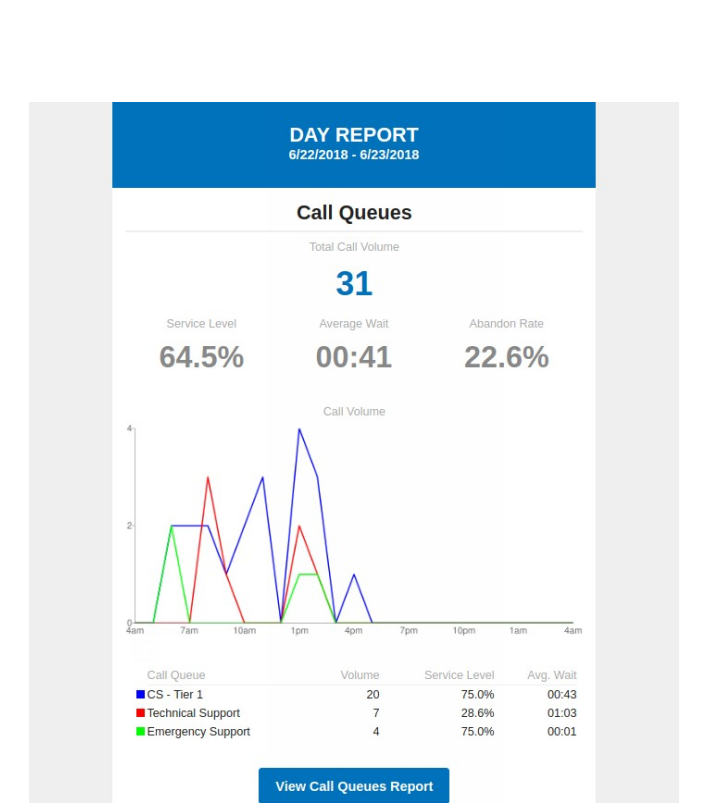

 An example of a received email is shown below.



For customization of the email templates the following php templates have been added into the Images section of the Core Module Admin UI (System > Settings > Advanced > Images).

a.   Call Center Report (Agent)

b.   Call Center Report (Dialed)

                   c.   Call Center Report (Queue)
                 d.   Call Center Report (Summary)
